l Dimensions:220*60*35mm

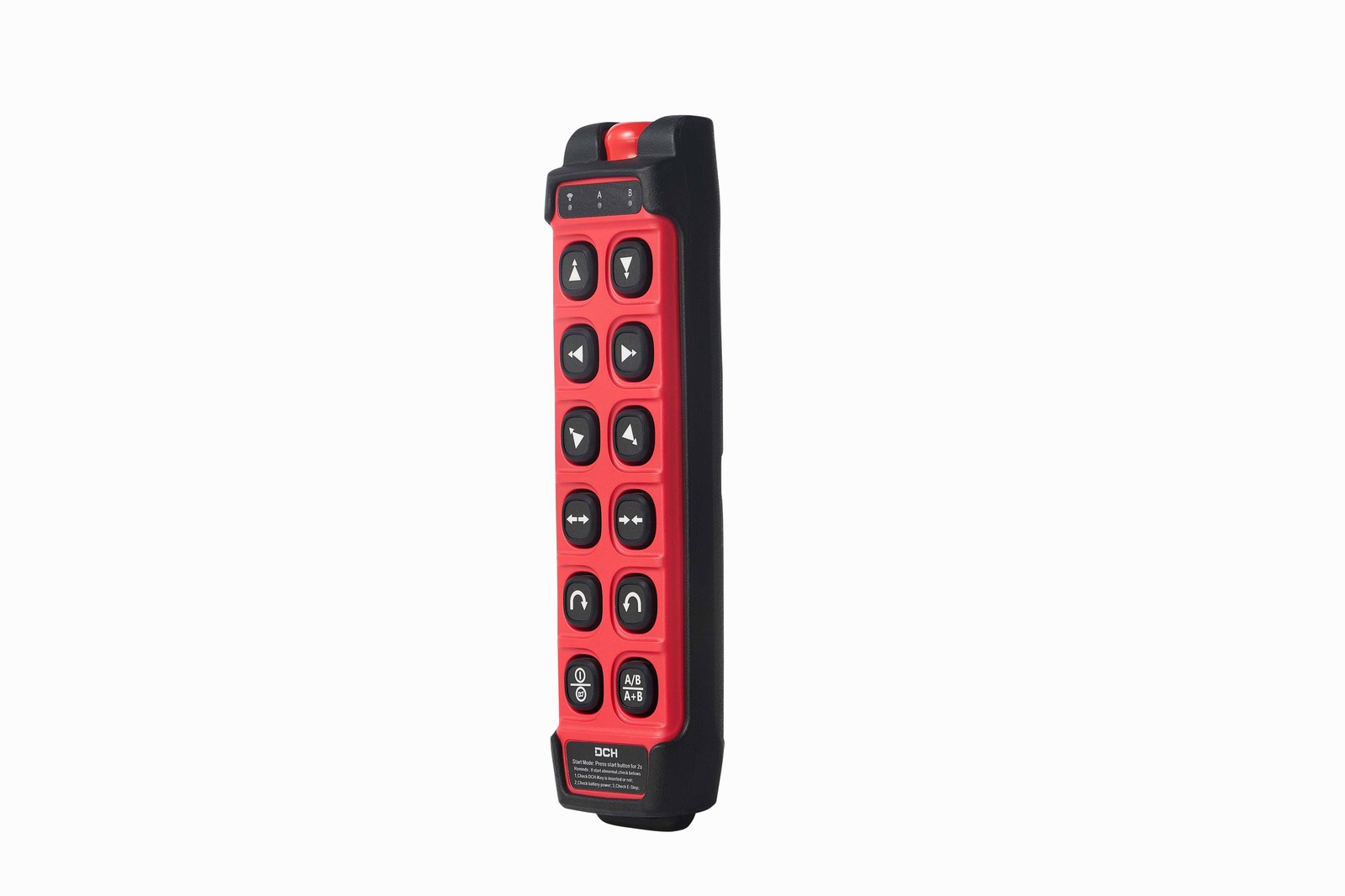

l12 double speed reset button

l Weight: 400g

l Current consumption: operating on average 3.75ma

l Continue working time: 400h or 50days

l Start：press start button for 2s

l Antenna：internal

l Emergency stop：Conforms to EN13849-1 standard

l Enclosure material ：PA6+30%GF with rubber cover

l Protection degree： IP65(Enclosure type 4)

l Power supply: 2 pieces AA battery

lButtons life: More than 5 million times

l Humidity range: 0 - 97% maximum non-condensing

l Center frequency range: 433-434mhz;

l Response time:Less than 100ms

l Safety: Active and passive Stop function,Parity & Checksum

l Power (RF Output): 10mW(e.r.p),

l Baud rate: 19200Kbps

l Approximately operating range:  100m(328ft)

l Temperature range： -25℃~+70℃ (-13F to +158F)

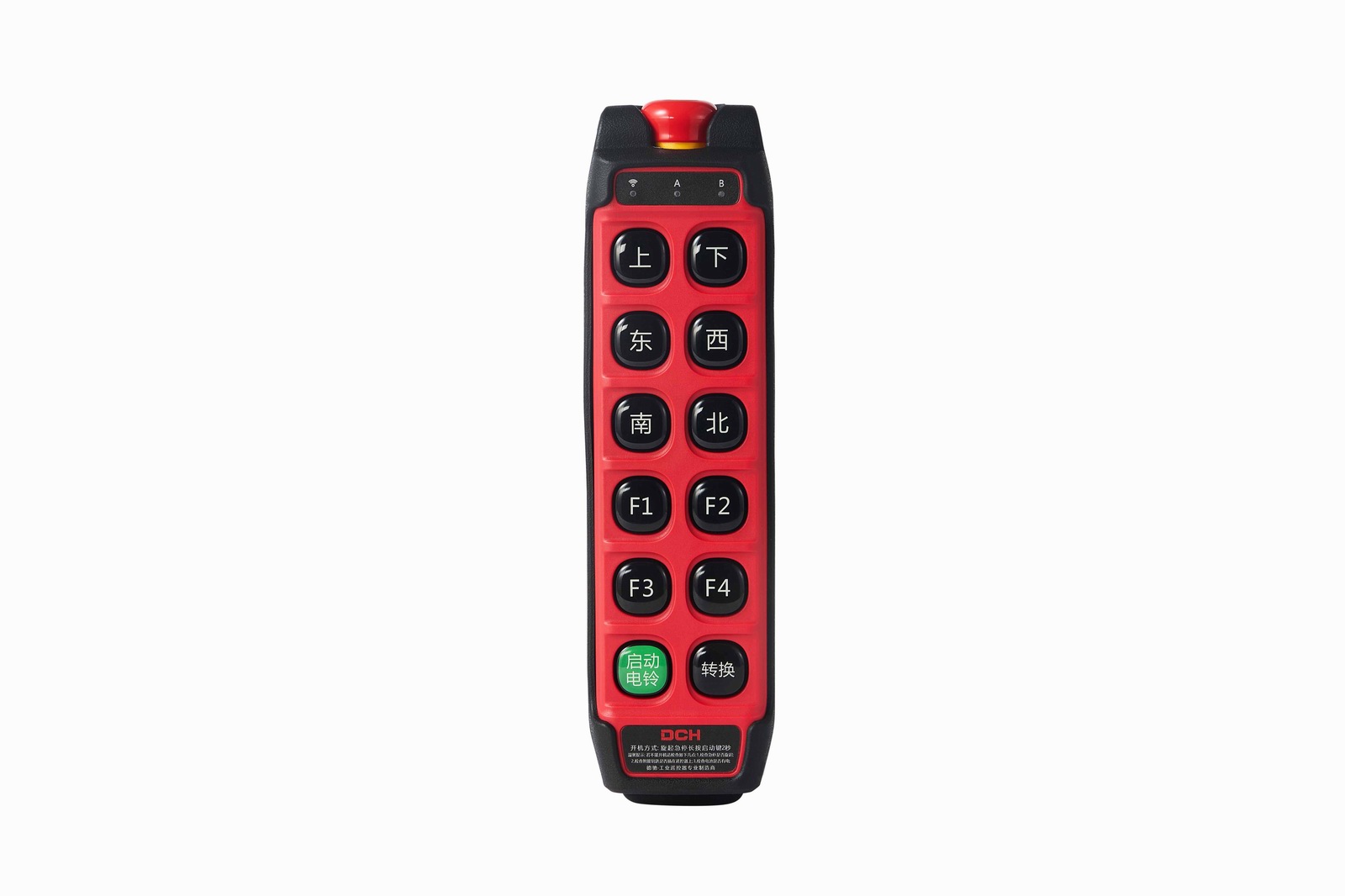

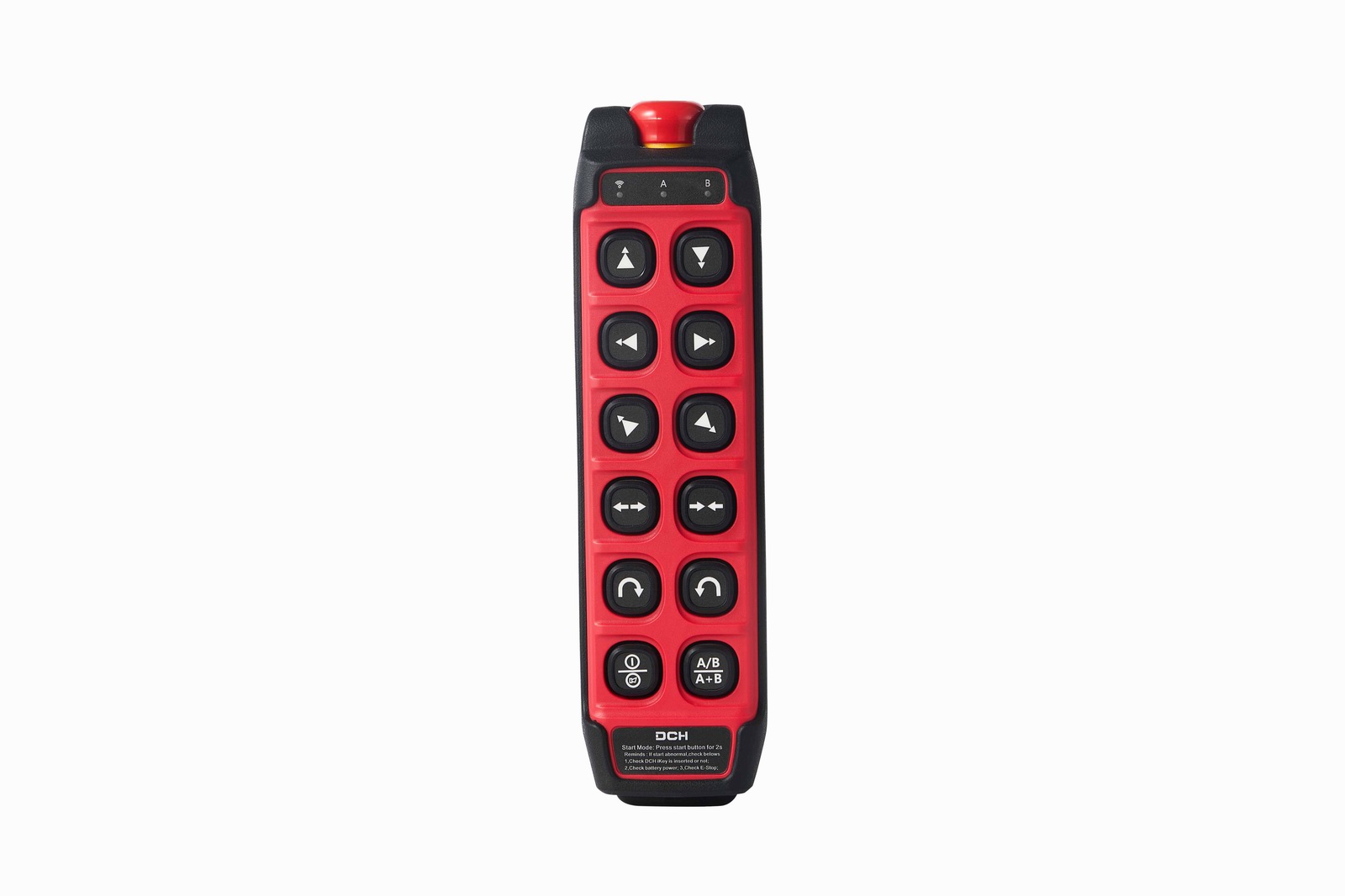

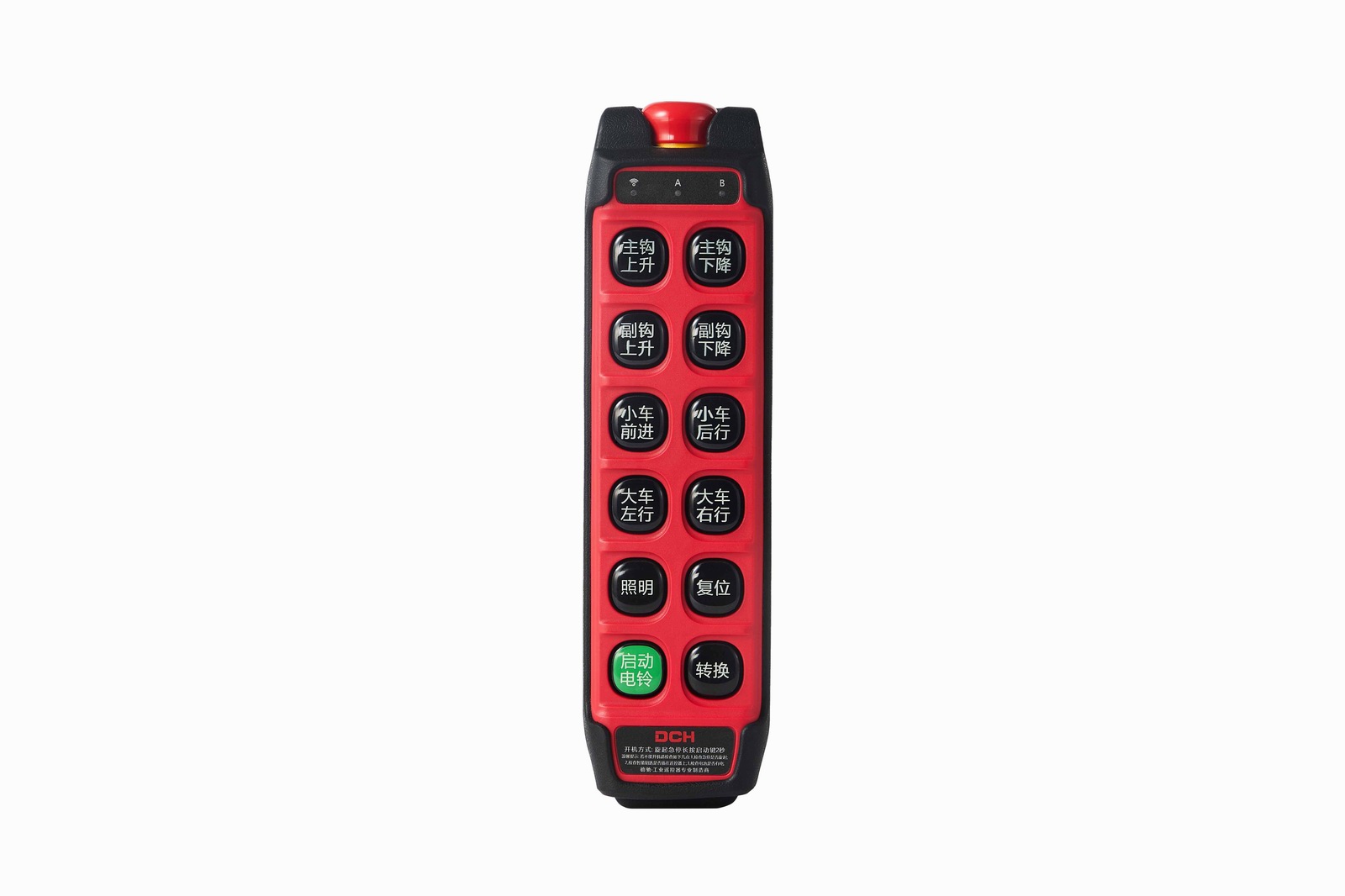

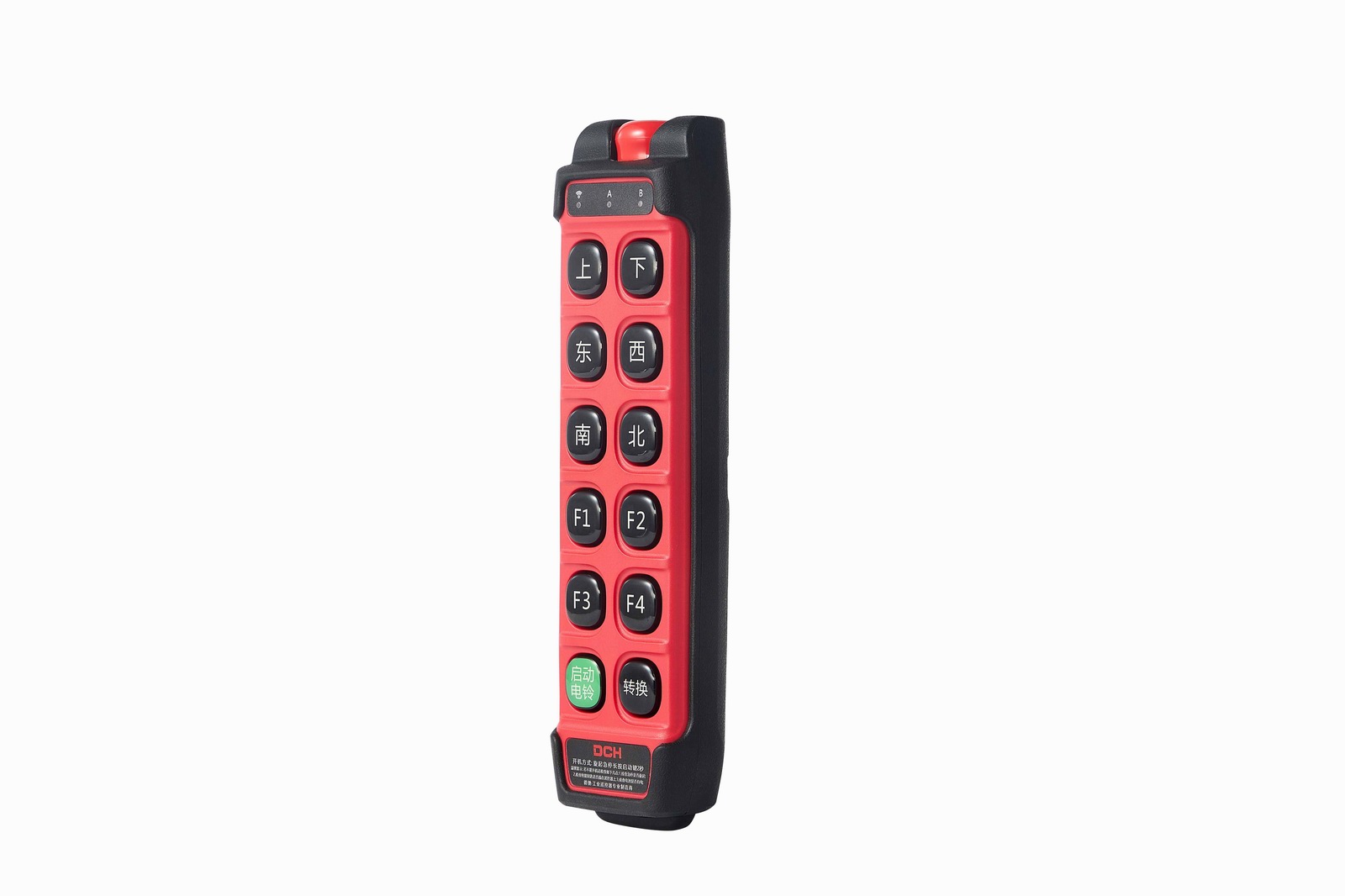

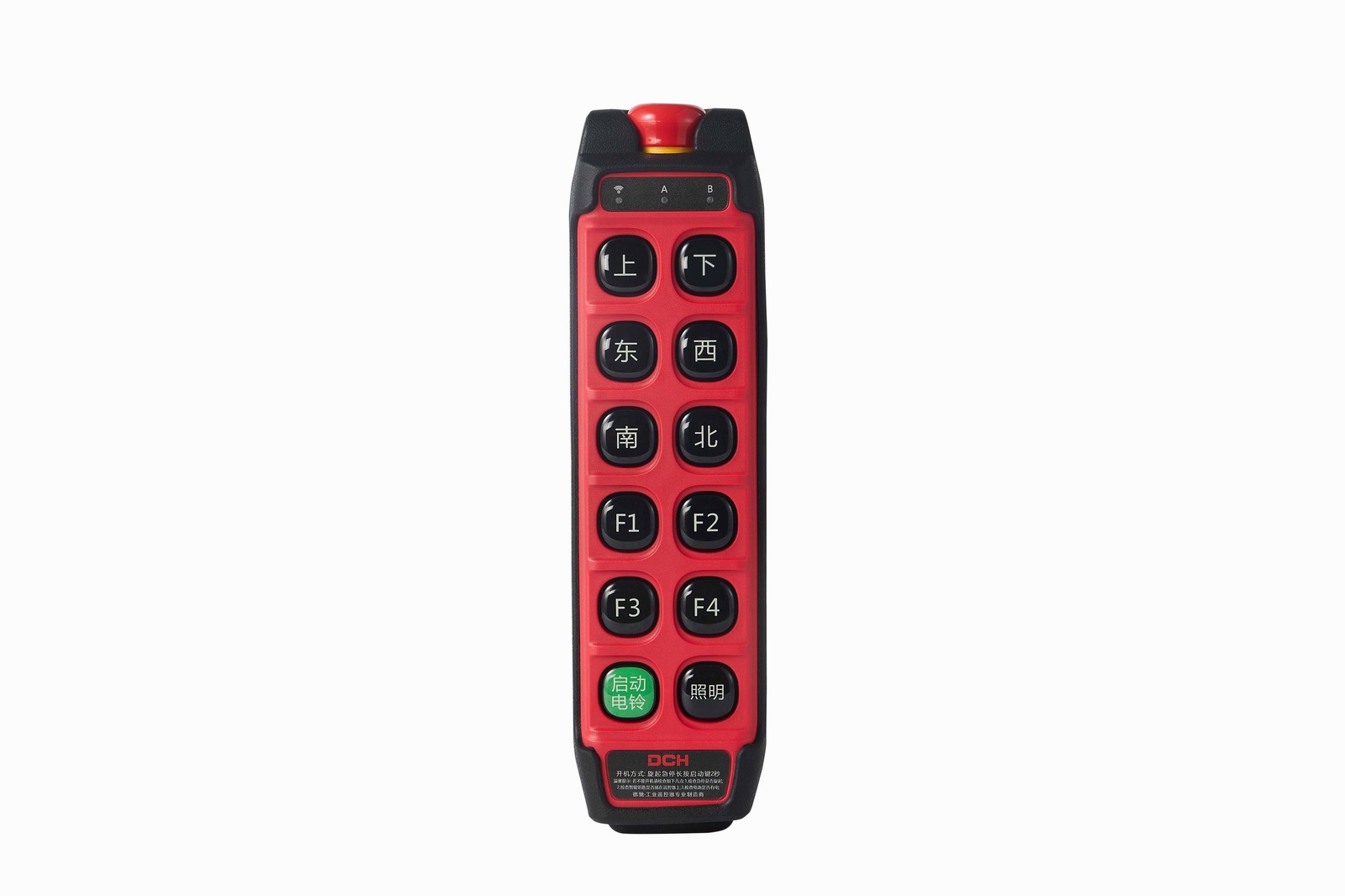

l Button text:options of arrow,English text, symbol or customized

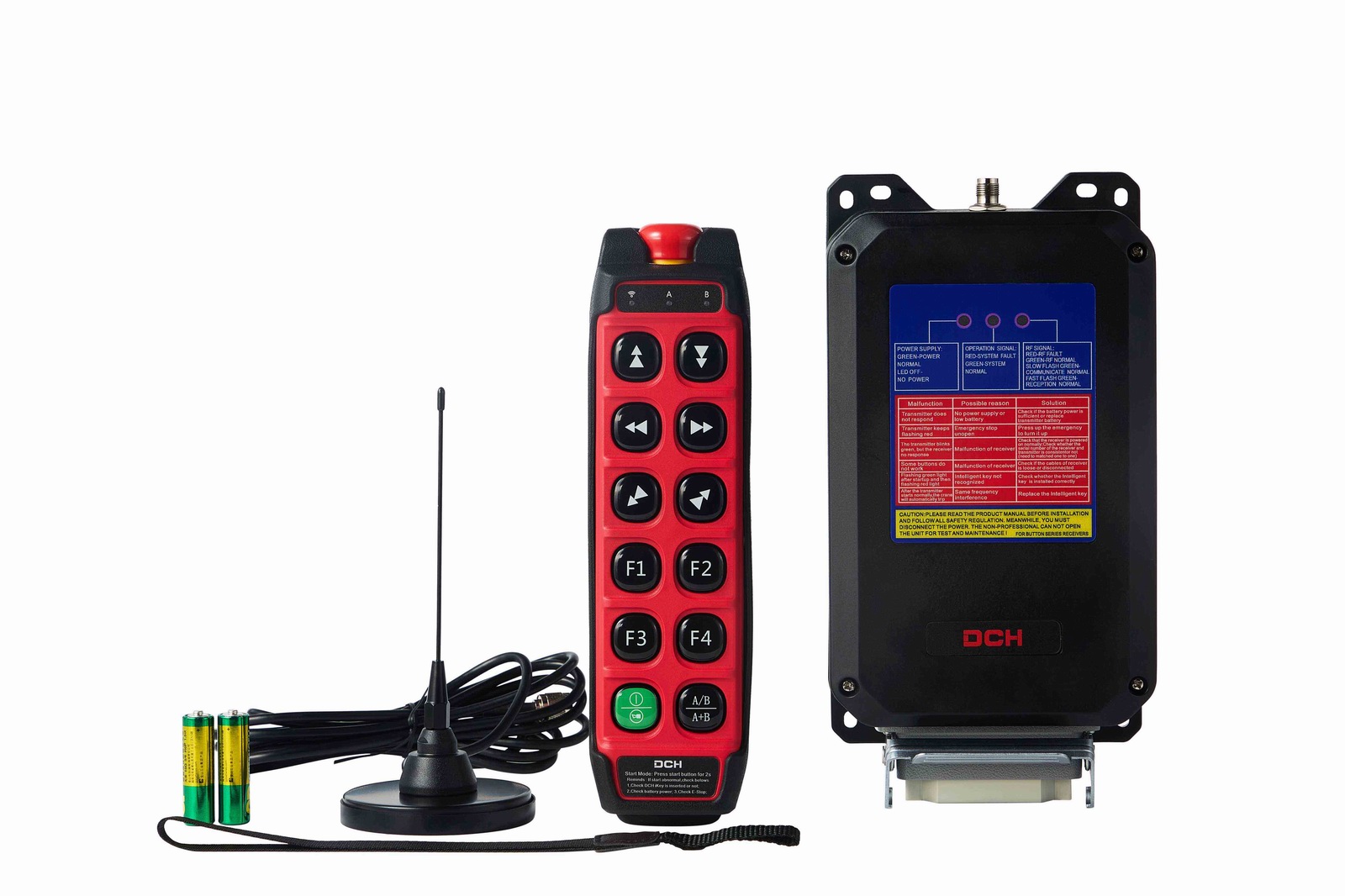

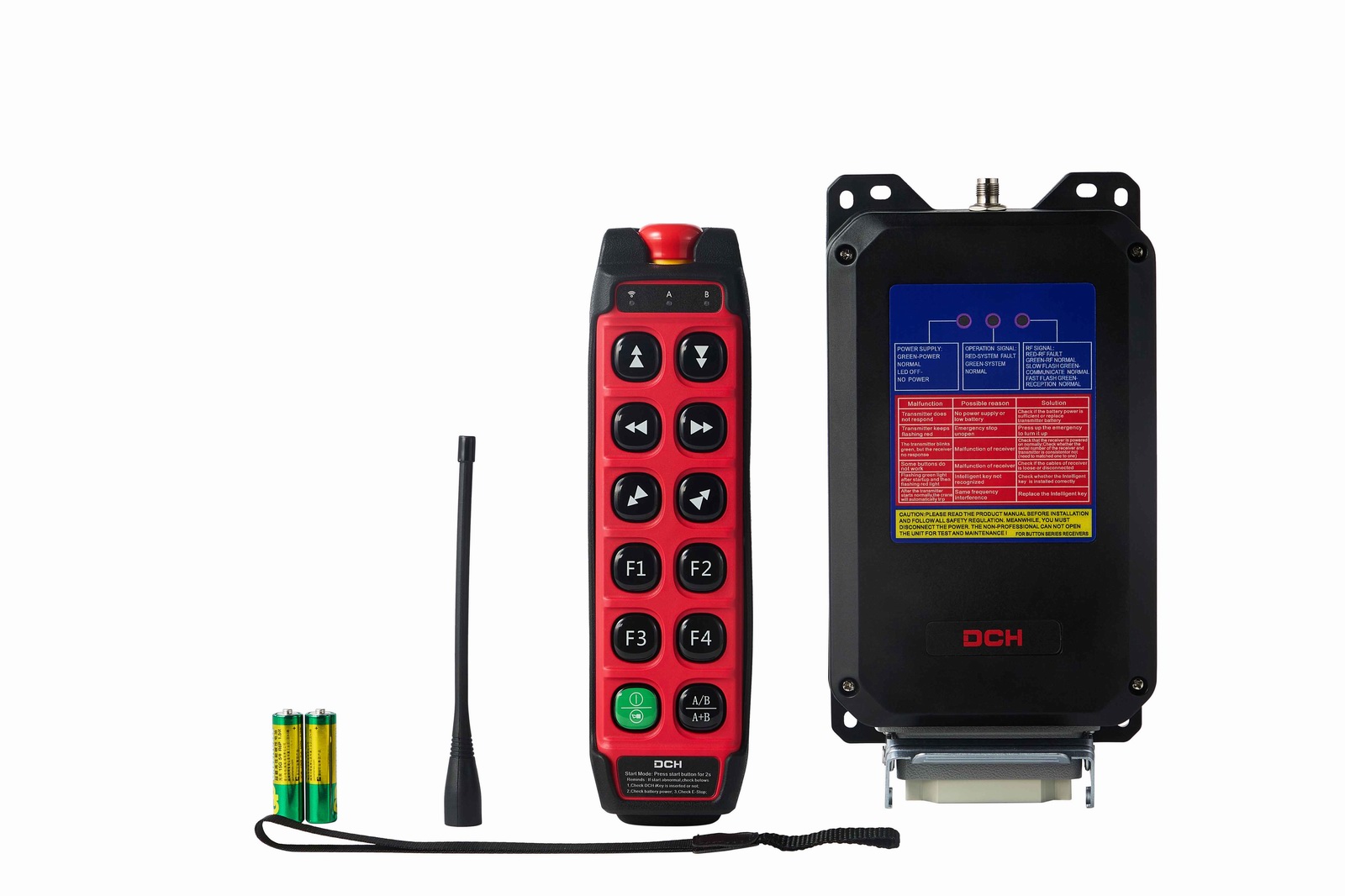

l Receiver: R20 or canbus
